IPC-IM08 Series
Fanless Industrial Computer with 2955U/ I3 4010Y, 2 x COM, 2 x RJ45
.elementor-widget-text-editor.elementor-drop-cap-view-stacked .elementor-drop-cap{background-color:#69727d;color:#fff}.elementor-widget-text-editor.elementor-drop-cap-view-framed .elementor-drop-cap{color:#69727d;border:3px solid;background-color:transparent}.elementor-widget-text-editor:not(.elementor-drop-cap-view-default) .elementor-drop-cap{margin-top:8px}.elementor-widget-text-editor:not(.elementor-drop-cap-view-default) .elementor-drop-cap-letter{width:1em;height:1em}.elementor-widget-text-editor .elementor-drop-cap{float:left;text-align:center;line-height:1;font-size:50px}.elementor-widget-text-editor .elementor-drop-cap-letter{display:inline-block}
For product pricing, customization, or other inquiries:
REQUEST QUOTE
Share to:
Description
Ordering Information
Drivers and Software
Download
Overview
It is the cost-effective industrial mini PC. Compact, space-saving, fanless design, zero noise disturbance, low power consumption and energy saving.
Key Features
Intel® Celeron® 2955U and Core I3 4010Y 4020Y BGA Processor and Intel® SOC Chipset
Rich I/O: 2 x LAN, 2 x COM (RS232), VGA, HDMI, 4 x USB 3.0, Audio
Single SODIMM for up to 8GB DDR3L Memory
Rich Storage: mSATA SSD, 2.5 Inch SSD/HDD
Embedded Expansion: Mini PCIe for WiFi
Key Functions
Support First-class temperature control ensures 24h/7 days without shutting down
Support 12V green and environmentally friendly
Support restore AC power loss/LAN PXE boot
Support WOL on Windows 7
Support dual screen (VGA and HDMI) for simultaneous display or synchronous different display
Specifications
|
Mechanical |
|
| Material | Aluminum alloy |
| Colour | Black |
| Size | 170 x 125 x 50mm |
| Weight | 1.5Kgs |
| Insallation Method | With mounting ears Wall-mounted, embedded, desktop |
|
Motherboard |
|
| CPU | Intel® Celeron® Processor 2955U (2M Cache, 1.40 GHz) Intel® Core™ i3-4010Y/4020Y Processor (3M Cache, 1.30 GHz) |
| Chipset | SOC |
| Network Card | 2 x Intel RTL 8168/8111/8112 gigabit lan |
| WiFi and Bluetooth | With dual antennas, 802.11ac 2.4+5Ghz, bt 4.0/4.2 |
| Memory | 1 x SO-DIMM DDR3L 1333/1600, up to 8GB RAM |
| Storage | 1 x 2.5 inch hard disk bay/1 x mSATA |
| Expand | 1 x Mini PCIE WiFi slot |
|
I/O Interfaces |
|
| Front Panel | 1 x Power button 4 x USB3.0 2 x COM |

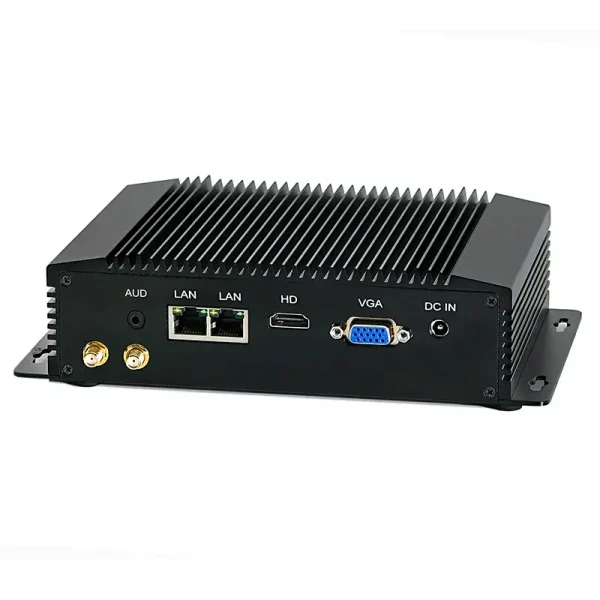

| Rear Panel | 1 x DC_in 1 x VGA 1 x HDMI 2 x Lan 1 x Audio 2 x WiFi antennas |
|
Software Support |
|
| Bios | AMI bios |
| System Support | Windows 10, linux ubuntu etc |
|
General |
|
| Cooling Mode | Fanless |
| Power Supply | DC100-240V AC/50-60Hz, DC 12V/3A |
| Packing List | IM08 industrial pc, power supply, power cord, wifi antennas, warranty card |
|
Environment |
|
| Operating Temperature | 0°C~70°C Centigrade (32°F~140°F) |
| Storage Temperature | -20°C~80°C Centigrade (-68°F~176°F) |
| Relative Humidity | 10%~90% (non-condensing) |
| Certification |
* Ordering Information *
|
Model |
Processor |
Graphics |
Frequency |
TDP |
Display |
Memory |
Storage |
LAN |
USB |
Power |
| IM08-2955U | Celeron 2955U | Intel® HD Graphics | 1.4 GHz | 15 W | VGA/HDMI | 1 x SO-DIMM DDR3L | 1 x 2.5 inch/1 x M-SATA | 2 | 4 | 12V/3A |
| IM08-4010Y | I3 4010Y/4020Y | Intel® HD Graphics 4200 | 1.3 GHz | 11.5 W | VGA/HDMI | 1 x SO-DIMM DDR3L | 1 x 2.5 inch/1 x M-SATA | 2 | 4 | 12V/3A |
* Supplemental Information *
Installation Method: Support multiple fixing methods such as desktop type, wall-mounted, embedded type etc
Optional Accessories:
Memory: 2G/4G/8G/ DDR3L RAM type
Storage: 32/64G/128G/256G/512G SSD/1TB solid state drive etc
1TB/2TB/3TB/5TB 2.5 inch hard drive etc
Optional 12V 3A adapter, optional power cords such as national standard, American standard, British standard, European standard, Australian standard
Download the Windows Driver Tool
IM08 Datasheet Download.pdf
