NFA-RS02 Series
1U Network Firewall Appliance, VPN Router Intel Atom D525, 4 x LAN
.elementor-widget-text-editor.elementor-drop-cap-view-stacked .elementor-drop-cap{background-color:#69727d;color:#fff}.elementor-widget-text-editor.elementor-drop-cap-view-framed .elementor-drop-cap{color:#69727d;border:3px solid;background-color:transparent}.elementor-widget-text-editor:not(.elementor-drop-cap-view-default) .elementor-drop-cap{margin-top:8px}.elementor-widget-text-editor:not(.elementor-drop-cap-view-default) .elementor-drop-cap-letter{width:1em;height:1em}.elementor-widget-text-editor .elementor-drop-cap{float:left;text-align:center;line-height:1;font-size:50px}.elementor-widget-text-editor .elementor-drop-cap-letter{display:inline-block}
For product pricing, customization, or other inquiries:
REQUEST QUOTE
Share to:
Description
Ordering Information
Drivers and Software
Download
Overview
It is the cost-effective firewall appliance. Equiped with the high-quality lightning-proof electrostatic motherboard, with the low power consumption and energy saving. The multiple WAN ports can be used for broadband overlay. The product adopts WAN/LAN independent modification mode, which can set multiple WAN broadband overlays, and can use broadband overlays of the same operator.
Key Features
Intel® Atom® D525 BGA Processor and Intel® SOC Chipset
Rich I/O: RST, Console, 2 x USB2.0, 4 x LAN, VGA, Power switch, ATX power socket
Single SODIMM for up to 4GB DDR3 Memory
Rich Storage: mSATA SSD, 2.5 Inch SSD/HDD
Chassis Form: Standard 1U Cabinet Type
Key Functions
The actual test traffic exceeds 1000m/s
WAN-LAN Throughput: throughput through 1 gigabit nic from lan to wan forwarding speed is 200mbps to 250mbps
Specifications
|
Mechanical |
|
| Chassis | Standard 1u cabinet type, rackable, with mounting bracket ears, wall hanging, foot pad |
| Colour | Black |
| Size | 430 x 250 x 50mm |
| Weight | 6Kgs |
| Installation Method | Desktop type/rack mounting |
|
Motherboard |
|
| CPU | Intel Atom® Processor D525 (1M Cache, 1.80 GHz) |
| Chipset | Intel SOC |
| Network Card | 4 x Intel 82583V/82574L gigabit lan |
| Intel® AES New Instructions | No |
| Memory | 1 x SO-DIMM DDR3, up to 4GB RAM |
| Storage | 1 x 2.5 inch hard disk bay/1 x mSATA |
|
I/O Interfaces |
|

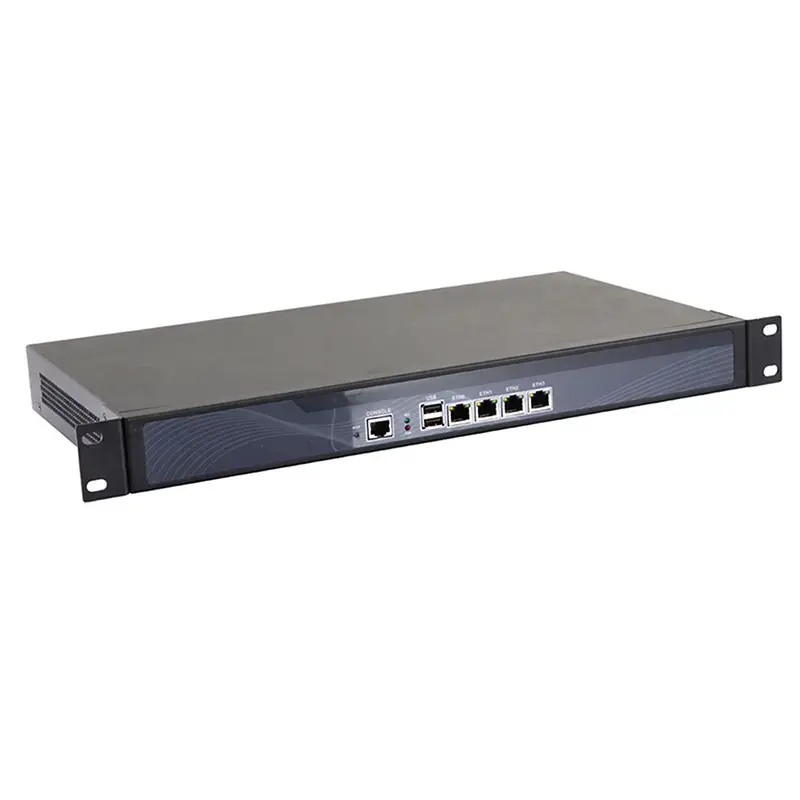

| Front Panel | 1 x Console 2 x USB2.0 4 x LAN |

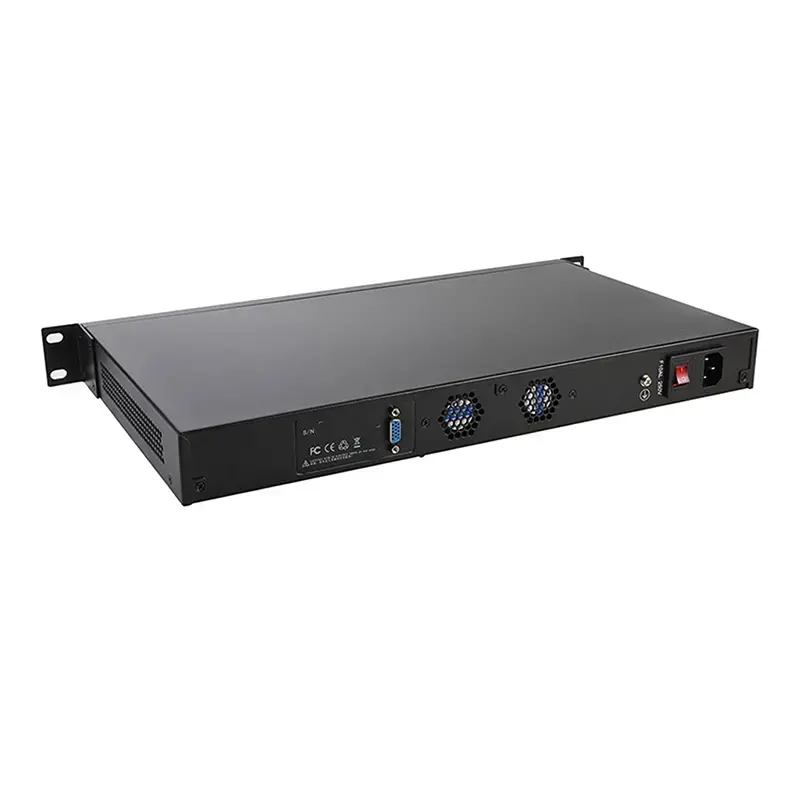

| Rear Panel | 1 x VGA 1 x Power switch 1 x ATX power socket |
|
Software Support |
|
| Bios | AMI bios |
| System Support | Any FreeBSD based router systems, Linux distros, or Win.OS etc |
| Compatibility | Firewalls tested with pfSense, untangle, OPNsense and other popular open-source software solutions |
|
General |
|
| Cooling Mode | Smart fan |
| Power Supply | 50W 12V 4.2A, 110-240V 50/60Hz |
| Packing List | RS02 firewall appliance, rack ears, power cord, warranty card |
|
Environment |
|
| Operating Temperature | 0°C~70°C Centigrade (32°F~140°F) |
| Storage Temperature | -20°C~80°C Centigrade (-68°F~176°F) |
| Relative Humidity | 10%~90% (non-condensing) |
| Certification |
* Ordering Information *
|
Model |
Processor |
Graphics |
Frequency |
TDP |
Display |
Memory |
Storage |
LAN |
USB |
Power |
| RS02-D525 | D525 | Intel® GMA3150 | 1.80 GHz | 13 W | VGA | 1 x SO-DIMM DDR3 | 1 x 2.5 inch/1 x M-SATA | 4 | 2 | 50W |
* Supplemental Information *
Installation Method: Support multiple fixing methods such as desktop type, rack mounting type etc
Optional Accessories:
Memory: 2G/4G DDR3 RAM type
Storage: 32G/64G/128G/256G/512G SSD/1TB solid state drive etc
1TB/2TB/3TB/5TB 2.5 inch hard drive etc
Optional power cords such as national standard, American standard, British standard, European standard, Australian standard etc
RS02 Datasheet Download.pdf
