IEC-IM05 Series
Industrial PC with 4th Gen Core I5 I7, 2 x LAN, 6 COM, GPIO, SIM 4G
.elementor-widget-text-editor.elementor-drop-cap-view-stacked .elementor-drop-cap{background-color:#69727d;color:#fff}.elementor-widget-text-editor.elementor-drop-cap-view-framed .elementor-drop-cap{color:#69727d;border:3px solid;background-color:transparent}.elementor-widget-text-editor:not(.elementor-drop-cap-view-default) .elementor-drop-cap{margin-top:8px}.elementor-widget-text-editor:not(.elementor-drop-cap-view-default) .elementor-drop-cap-letter{width:1em;height:1em}.elementor-widget-text-editor .elementor-drop-cap{float:left;text-align:center;line-height:1;font-size:50px}.elementor-widget-text-editor .elementor-drop-cap-letter{display:inline-block}
For product pricing, customization, or other inquiries:
REQUEST QUOTE
Share to:
Description
Ordering Information
Drivers and Software
Download
Overview
It is the cost-effective industrial mini PC. Compact, space-saving, fanless design, zero noise disturbance, low power consumption and energy saving. Applicable to a wide range of industrial applications: 7 x 24 hours of stable work, strong computing power, and can better meet industrial needs. Not afraid of various harsh environments: dustproof, shockproof, good corrosion resistance, strong anti-interference, wide temperature design. Suitable for industrial automation, medical care, logistics and transportation, electronic education etc.
Key Features
Intel® Core™ Gen 4th I5 4200U/I7 4500U BGA Processor and Intel® SOC Chipset
Rich I/O: 4 x USB3.0, 4 x USB2.0, 2 x LAN, VGA, HDMI, 8 BIT GPIO, 6 x COM, DC, SW
Single SODIMM for up to 8GB Memory
Rich Storage: mSATA SSD, 2.5 Inch SSD/HDD
Embedded Expansion: PCIe for WiFi/4G, with SIM Slot
Key Functions
Support green ultra-low power consumption, 7 x 24 hours
Support 6 x COM, COM1 COM2 for RS232 RS422 RS485 soft switching under BIOS
Support 8-bit GPIO for industrial equipment needs
Support watchdog for 256-level
Support 4G network module with sim slot onboard, wake on Lan, automatic boot after power failure, resume By Alarm, PxE Lan boot functions
Support dual screen (VGA and HDMI) for simultaneous display or synchronous different display
Specifications
|
Mechanical |
|
| Material | Aluminum alloy |
| Colour | Black |
| Size | 230 x 175 x 50mm |
| Weight | 2.5Kgs |
| Insallation Method | With mounting ears Wall-mounted, embedded, desktop |
|
Motherboard |
|
| CPU | Intel® Core™ i5-4200U Processor (3M Cache, up to 2.60 GHz) Intel® Core™ i7-I7 4500U Processor (4M Cache, up to 3.30 GHz) |
| Chipset | SOC |
| Network Card | 2 x Intel I211 10/100/1000 gigabit ethernet nics |
| WiFi and Bluetooth | With dual antennas, 802.11ac 2.4+5Ghz, bt 4.0/4.2 |
| Memory | 1 x SO-DIMM DDR3L 1333/1600, up to 8GB RAM |
| Storage | 1 x 2.5 inch hard disk bay/1 x mSATA |
| Expand | 2 x Mini PCIE slot (WiFi/4G), with sim slot onboard |
|
I/O Interfaces |
|
| Front Panel | 1 x Power button 6 x COM (COM1 COM2 for RS232 RS422 RS485) 2 x USB3.0 2 x USB2.0 |

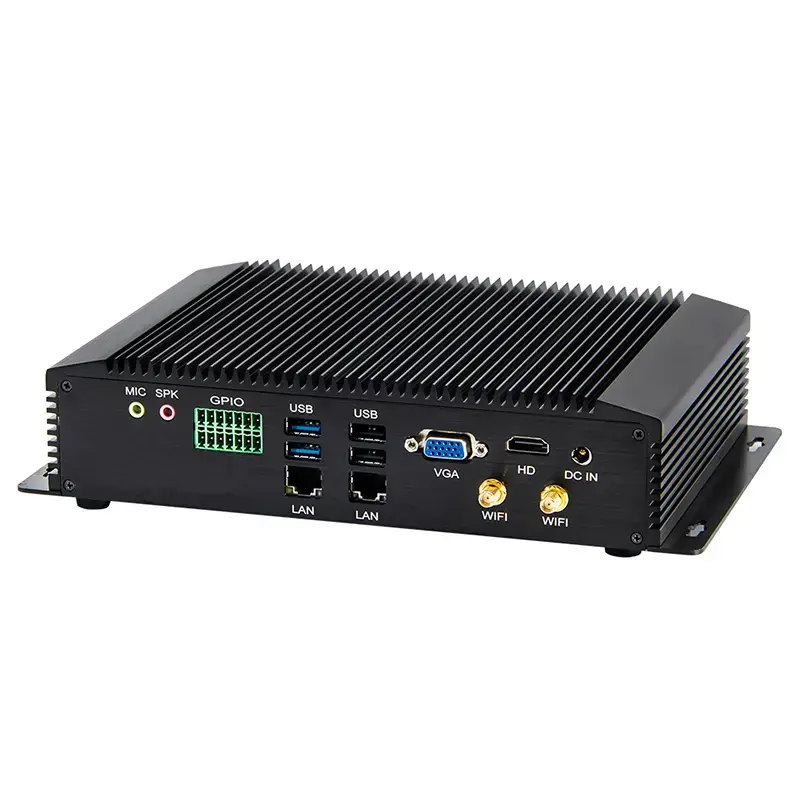

| Rear Panel | 1 x DC_in 1 x VGA 1 x HDMI 2 x USB3.0 2 x USB2.0 2 x Lan 1 x GPIO 1 x Audio 2 x WiFi antennas |
|
Software Support |
|
| Bios | AMI bios |
| System Support | Windows 10, linux ubuntu etc |
|
General |
|
| Cooling Mode | Fanless |
| Power Supply | DC100-240V AC/50-60Hz, DC 12V5A |
| Packing List | IM05 industrial pc, power supply, power cord, wifi antennas, warranty card |
|
Environment |
|
| Operating Temperature | 0°C~70°C Centigrade (32°F~140°F) |
| Storage Temperature | -20°C~80°C Centigrade (-68°F~176°F) |
| Relative Humidity | 10%~90% (non-condensing) |
| Certification |
* Ordering Information *
|
Model |
Processor |
Graphics |
Frequency |
TDP |
Display |
Memory |
Storage |
LAN |
USB |
COM |
Power |
| IM05-4200U | I5 4200U | Intel® HD Graphics 4400 | 1.60~2.60 GHz | 15 W | VGA/HDMI | 1 x SO-DIMM DDR3L | 1 x 2.5 inch/1 x M-SATA | 2 | 8 | 6 | 12V/5A |
| IM05-4500U | I7 4500U | Intel® HD Graphics 5000 | 1.7~3.3 GHz | 15 W | VGA/HDMI | 1 x SO-DIMM DDR3L | 1 x 2.5 inch/1 x M-SATA | 2 | 8 | 6 | 12V/5A |
* Supplemental Information *
Installation Method: Support multiple fixing methods such as desktop type, wall-mounted, embedded type etc
Optional Accessories:
Memory: 2G/4G/8G DDR3L RAM type
Storage: 32G/64G/128G/256G/512G SSD/1TB solid state drive etc
1TB/2TB/3TB/5TB 2.5 inch hard drive etc
Optional 12V 5A adapter, optional power cords such as national standard, American standard, British standard, European standard, Australian standard
Download the Windows Driver Tool
IM05 Datasheet Download.pdf
