NUC-BM19 Series
.elementor-heading-title{padding:0;margin:0;line-height:1}.elementor-widget-heading .elementor-heading-title[class*=elementor-size-]>a{color:inherit;font-size:inherit;line-height:inherit}.elementor-widget-heading .elementor-heading-title.elementor-size-small{font-size:15px}.elementor-widget-heading .elementor-heading-title.elementor-size-medium{font-size:19px}.elementor-widget-heading .elementor-heading-title.elementor-size-large{font-size:29px}.elementor-widget-heading .elementor-heading-title.elementor-size-xl{font-size:39px}.elementor-widget-heading .elementor-heading-title.elementor-size-xxl{font-size:59px}
NUC-BM19 Series
NUC Mini PC Intel Core I5 6267U/I5 7267U/I7 6650U, VGA, HDMI
.elementor-widget-text-editor.elementor-drop-cap-view-stacked .elementor-drop-cap{background-color:#69727d;color:#fff}.elementor-widget-text-editor.elementor-drop-cap-view-framed .elementor-drop-cap{color:#69727d;border:3px solid;background-color:transparent}.elementor-widget-text-editor:not(.elementor-drop-cap-view-default) .elementor-drop-cap{margin-top:8px}.elementor-widget-text-editor:not(.elementor-drop-cap-view-default) .elementor-drop-cap-letter{width:1em;height:1em}.elementor-widget-text-editor .elementor-drop-cap{float:left;text-align:center;line-height:1;font-size:50px}.elementor-widget-text-editor .elementor-drop-cap-letter{display:inline-block}
For product pricing, customization, or other inquiries:
REQUEST QUOTE
Share to:
Description
Ordering Information
Drivers and Software
Download
Overview
It is the high-efficiency mini PC. Compact, space-saving, smart silent fan, low power consumption and energy saving. Processing video clips, rendering special effects, modeling and synthesis, etc. more efficient.
Key Features
Intel® 6-7th Gen Intel® Core™ i5/i7 BGA Processor and Intel® SOC Chipset
Rich I/O: VGA, HDMI, 4 x USB 3.0, 2 x USB 2.0, LAN, Spk, Mic
Single SODIMM for up to 8GB DDR3L Memory
Rich Storage: mSATA SSD, 2.5 Inch SSD/HDD
Embedded Expansion: 2 x PCIe for WiFi
Key Functions
Support diskless boot
Support Restore AC Power Loss
Support dual screen (VGA and HDMI) for simultaneous display or synchronous different display
Specifications
|
Mechanical |
|
| Material | Aluminum alloy |
| Colour | Silver |
| Size | 170 x 130 x 48mm |
| Weight | 2.5Kgs |
| Insallation Method | Desktop type/vesa mounting With holding vertical stand, vesa mount as the optional |
|
Motherboard |
|
| CPU | Intel® Core™ i5-6267U Processor (4M Cache, up to 3.30 GHz) Intel® Core™ i5-7260U/7267U Processor (4M Cache, up to 3.40 GHz) Intel® Core™ i7-6650U Processor (4M Cache, up to 3.40 GHz) |
| Chipset | SOC |
| Network Card | 1 x Intel RTL 8168/8111/8112 gigabit lan |
| WiFi and Bluetooth | With dual antennas, 802.11ac 2.4+5Ghz, bt 4.0/4.2 |
| Memory | 1 x SODIMM DDR3L-1600, up to 8GB RAM |
| Storage | 1 x 2.5 inch hard disk bay/1 x mSATA |
| Expand | 2 x PCIE WiFi slot (half size and full size) |
|
I/O Interfaces |
|
| Front Panel | 1 x Power button 4 x USB3.0 2 x USB2.0 |

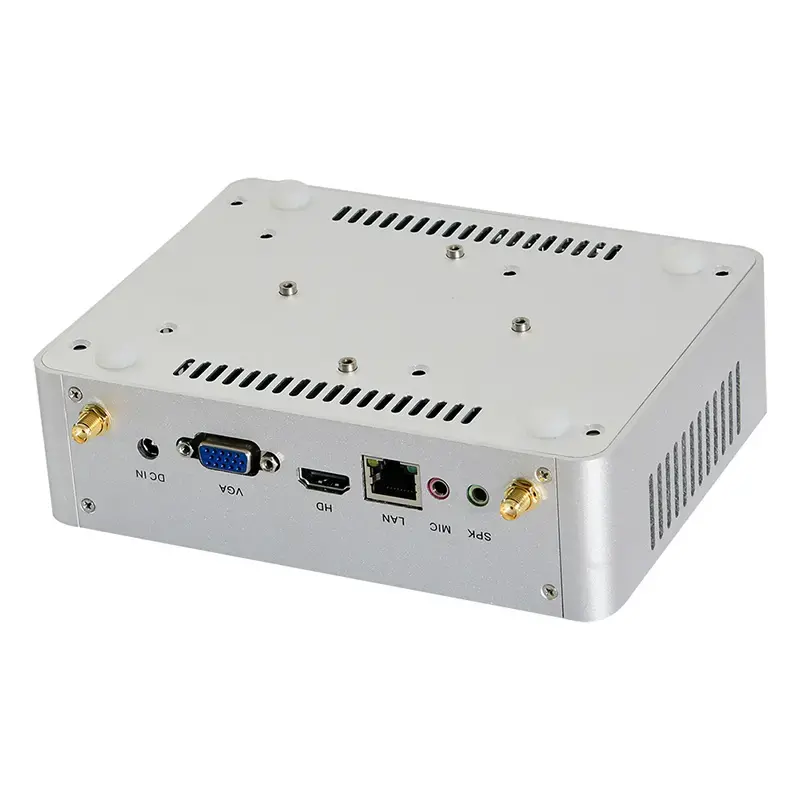

| Rear Panel | 1 x DC_in 1 x VGA 1 x HDMI 1 x Lan 1 x Audio 2 x WiFi antennas |
|
Software Support |
|
| Bios | AMI bios |
| System Support | Windows 10, linux ubuntu etc |
|
General |
|
| Cooling Mode | Smart silent fan (place it vertically to reduce the fan speed & sound effectively) |
| Power Supply | DC100-240V AC/50-60Hz, DC 12V/5A |
| Packing List | BM19 mini pc, power supply, power cord, vertical stand, wifi antennas, warranty card |
|
Environment |
|
| Operating Temperature | 0°C~70°C Centigrade (32°F~140°F) |
| Storage Temperature | -20°C~80°C Centigrade (-68°F~176°F) |
| Relative Humidity | 10%~90% (non-condensing) |
| Certification |
* Ordering Information *
|
Model |
Processor |
Graphics |
Frequency |
TDP |
Display |
Memory |
Storage |
LAN |
USB |
Power |
| BM19-6267U | I5 6267U | Intel® Iris® Graphics 550 | 2.9~3.3 GHz | 28 W | VGA/HDMI | 1 x SO-DIMM DDR3L | 1 x 2.5 inch/1 x M-SATA | 1 | 6 | 12V/5A |
| BM19-7267U | I5 7267U | Intel® Iris® Plus Graphics 650 | 3.1~3.5 GHz | 28 W | VGA/HDMI | 1 x SO-DIMM DDR3L | 1 x 2.5 inch/1 x M-SATA | 1 | 6 | 12V/5A |
| BM19-6650U | I7 6650U | Intel® Iris® Graphics 540 | 2.2~3.4 GHz | 15 W | VGA/HDMI | 1 x SO-DIMM DDR3L | 1 x 2.5 inch/1 x M-SATA | 1 | 6 | 12V/5A |
* Supplemental Information *
Installation Method: Support multiple fixing methods such as desktop type, vesa mounting type etc
Optional Accessories:
Memory: 2G/4G/8G/ DDR3L RAM type
Storage: 64G/128G/256G/512G SSD/1TB solid state drive etc
1TB/2TB/3TB/5TB 2.5 inch hard drive etc
Optional 12V 5A adapter, optional power cords such as national standard, American standard, British standard, European standard, Australian standard
Download the Windows Driver Tool
