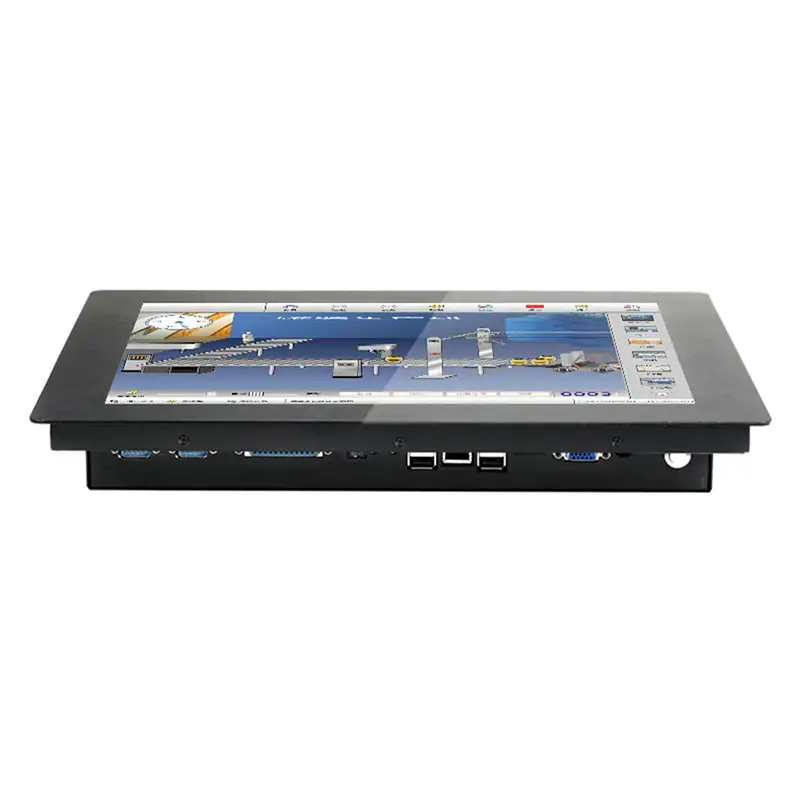

TPC-PW02 Series
19 Inch All in One Touch Panel Industrial PC, Intel Celeron/ I5/ I7, Resistive, 2MM
/*! elementor – v3.20.0 – 26-03-2024 */
.elementor-widget-text-editor.elementor-drop-cap-view-stacked .elementor-drop-cap{background-color:#69727d;color:#fff}.elementor-widget-text-editor.elementor-drop-cap-view-framed .elementor-drop-cap{color:#69727d;border:3px solid;background-color:transparent}.elementor-widget-text-editor:not(.elementor-drop-cap-view-default) .elementor-drop-cap{margin-top:8px}.elementor-widget-text-editor:not(.elementor-drop-cap-view-default) .elementor-drop-cap-letter{width:1em;height:1em}.elementor-widget-text-editor .elementor-drop-cap{float:left;text-align:center;line-height:1;font-size:50px}.elementor-widget-text-editor .elementor-drop-cap-letter{display:inline-block}
.elementor-widget-text-editor.elementor-drop-cap-view-stacked .elementor-drop-cap{background-color:#69727d;color:#fff}.elementor-widget-text-editor.elementor-drop-cap-view-framed .elementor-drop-cap{color:#69727d;border:3px solid;background-color:transparent}.elementor-widget-text-editor:not(.elementor-drop-cap-view-default) .elementor-drop-cap{margin-top:8px}.elementor-widget-text-editor:not(.elementor-drop-cap-view-default) .elementor-drop-cap-letter{width:1em;height:1em}.elementor-widget-text-editor .elementor-drop-cap{float:left;text-align:center;line-height:1;font-size:50px}.elementor-widget-text-editor .elementor-drop-cap-letter{display:inline-block}
For product pricing, customization, or other inquiries:
REQUEST QUOTE
Share to:
Description
Ordering Information
Drivers and Software
Download
Overview
It is the cost-effective 19 inch led industrial panel computer. It is available to choose the intel celeron or core processor. The compact embedded system can provide high-performance computing. High durability design, supports 2 to 3 serial ports, 4 USB ports and 1 gigabit ethernet port to meet various industrial applications.
Key Features
Industrial Grade 19 Inch LED, with 2MM Ultra-Thin
Rich I/O: DC-IN, VGA, 3 x COM, 4 x USB2.0, LAN, Audio (I3/I5/I7 with VGA and HDMI, 2 x COM)
Single SODIMM for up to 8GB DDR3L Memory
Rich Storage: mSATA SSD, 2.5 Inch SSD/HDD
Embedded Expansion: Mini PCIe for WiFi/4G, with SIM slot onboard
Key Functions
Support diskless boot
Support automatic boot after power failure
Support wake on Lan
Support watchdog for 256-level
Support 4G network module with sim slot onboard
Specifications
|
Mechanical |
|
| Panel | 2mm ultra thin embedded panel |
| Colour | Black |
| Opening Hole Size | 435 x 359mm (L x W) |
| Size | 452.5 x 376.5 x 59.5mm |
| Weight | 6.25Kgs |
| Installation Method | Standard VESA screw hole (75 x 75 or 100 x 100mm) for flexible installation, vesa mount for optional Embedded (recommended)/wall-mounted/desktop/cantilevered etc |
|
LCD Display |
|
| Display Type | Industrial grade 19 inch LED |
| Resolution | 1280 x 1024 |
| Lumens (cd/m2) | 250 |
| Contrast | 1000 |
|
Touch Screen |
|
| Touch Type | Made-in-china 5-wire resistive touch screen Taiwan imported 5-wire high temperature resistive touch screen |
| Durability (Number of Touches) | > 1 million times |
|
Motherboard |
|
| CPU | Intel® Celeron® Processor J1800 (1M Cache, up to 2.58 GHz) Intel® Celeron® Processor J1900 (2M Cache, up to 2.42 GHz) Intel® Celeron® Processor 3855U (2M Cache, 1.60 GHz) Intel® Core™ i5-3317U Processor (3M Cache, up to 2.60 GHz) Intel® Core™ i7-3537U Processor (4M Cache, up to 3.10 GHz) 4th/6th Gen I5/I7 optional |
| Chipset | Intel SOC |
| Watchdog Timer | 255 levels |
| Network Card | 1 x Realtek 8111E gigabit lan |
| WiFi and Bluetooth | N/A, optional to add |
| Memory | 1 x SO-DIMM DDR3L, up to 8GB RAM |
| Storage | 1 x 2.5 inch hard disk bay/1 x mSATA |
| Expand | 1 x Mini PCIE for WiFi/4G, with sim slot |
|
I/O Interfaces |
|
| J1800/J1900/3855U Rear Panel |
1 x Power SW 1 x DC_IN 1 x VGA 3 x COM 4 x USB2.0 1 x Lan 1 x Audio |
| I3/I5/I7 Rear Panel |
1 x Power SW 1 x DC_IN 1 x HDMI 1 x VGA 4 x USB2.0 1 x Lan 1 x Audio 2 x COM |
|
Software Support |
|
| Bios | AMI bios |
| System Support | Windows 10, linux ubuntu etc |
|
General |
|
| Cooling Mode | Fanless/Smart fan |
| Power Supply | DC100-240V AC/50-60Hz, DC 12V 4A-5A |
| Packing List | PW02 industrial touch panel pc, power supply, power cord, touch pen, embedded buckles, warranty card |
|
Environment |
|
| Operating Temperature | -10℃~50℃ surface air flow |
| Storage Temperature | -20℃~60℃ |
| Working Humidity | 10 ~ 95% @ 40°C (non-condensing) |
| Certification |
* Ordering Information *
|
Model |
Processor |
Cooling System |
Graphics |
Frequency |
TDP |
Display |
Memory |
Storage |
LAN |
USB |
COM |
Power |
| PW02-J1800 | Celeron J1800 | Fanless | Intel® HD Graphics | 2.58~2.41 GHz | 10 W | VGA | 1 x SO-DIMM DDR3L | 1 x 2.5 inch/1 x M-SATA | 1 | 4 | 3 | 12V/4A |
| PW02-J1900 | Celeron J1900 | Fanless | Intel® HD Graphics | 2.00~2.42 GHz | 10 W | VGA | 1 x SO-DIMM DDR3L | 1 x 2.5 inch/1 x M-SATA | 1 | 4 | 3 | 12V/4A |
| PW02-3855U | Celeron 3855U | Smart fan | Intel® HD Graphics 510 | 1.60 GHz | 15 W | VGA | 1 x SO-DIMM DDR3L | 1 x 2.5 inch/1 x M-SATA | 1 | 4 | 3 | 12V/4A |
| PW02-3317U | I5 3317U | Smart fan | Intel® HD Graphics 4000 | 1.70~2.60 GHz | 17 W | VGA/HDMI | 1 x SO-DIMM DDR3L | 1 x 2.5 inch/1 x M-SATA | 1 | 4 | 2 | 12V/5A |
| PW02-3537U | I7 3537U | Smart fan | Intel® HD Graphics 4000 | 2.00~3.10 GHz | 17 W | VGA/HDMI | 1 x SO-DIMM DDR3L | 1 x 2.5 inch/1 x M-SATA | 1 | 4 | 2 | 12V/5A |
* Supplemental Information *
Installation Method: Support multiple fixing methods such as embedded (recommended)/wall-mounted/desktop/cantilevered etc
Optional Accessories:
Memory: 2G/4G/8G DDR3L RAM type
Storage: 32G/64G/128G/256G/512G SSD/1TB solid state drive etc
1TB/2TB/3TB/5TB 2.5 inch hard drive etc
Optional 12V 4A/5A adapter, optional power cords such as national standard, American standard, British standard, European standard, Australian standard
PW02 Datasheet Download.pdf
